Festool OF 1400 EBQ-Plus OF 1400W Plunge Router (574346)

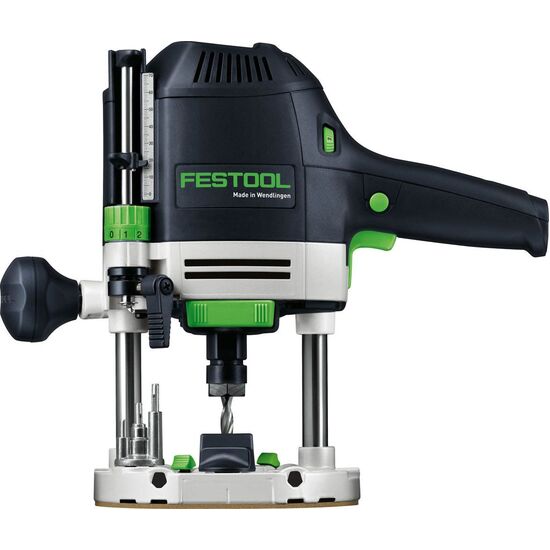

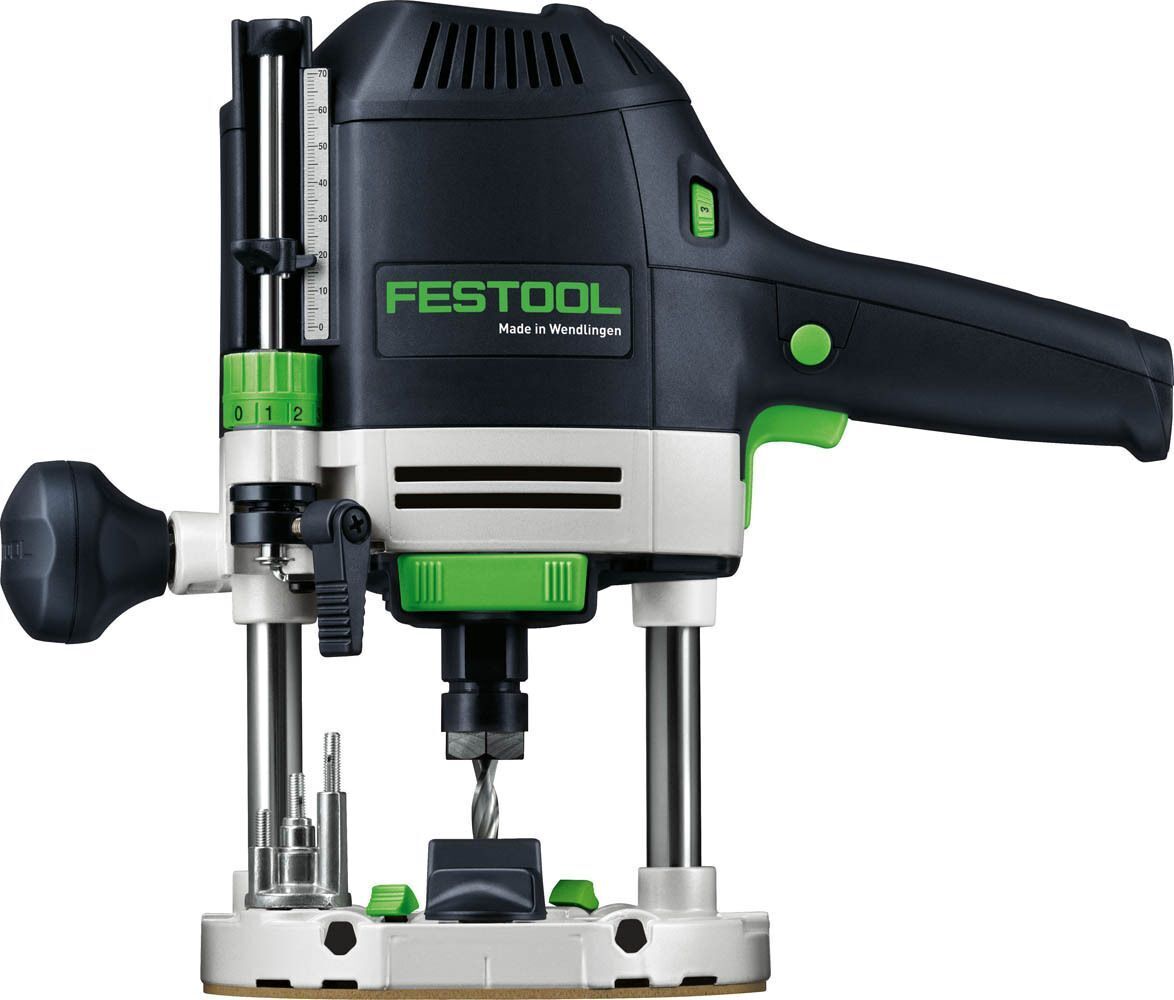

Festool OF 1400 EBQ-Plus OF 1400W Plunge Router

The OF 1400 router is our most versatile router, producing 1400 W of power in a machine that weighs less than 5 kg. Small enough to be extremely manoeuvrable, it's large 70 mm routing stroke ensures sufficient depth when recessing fittings or routing with templates.

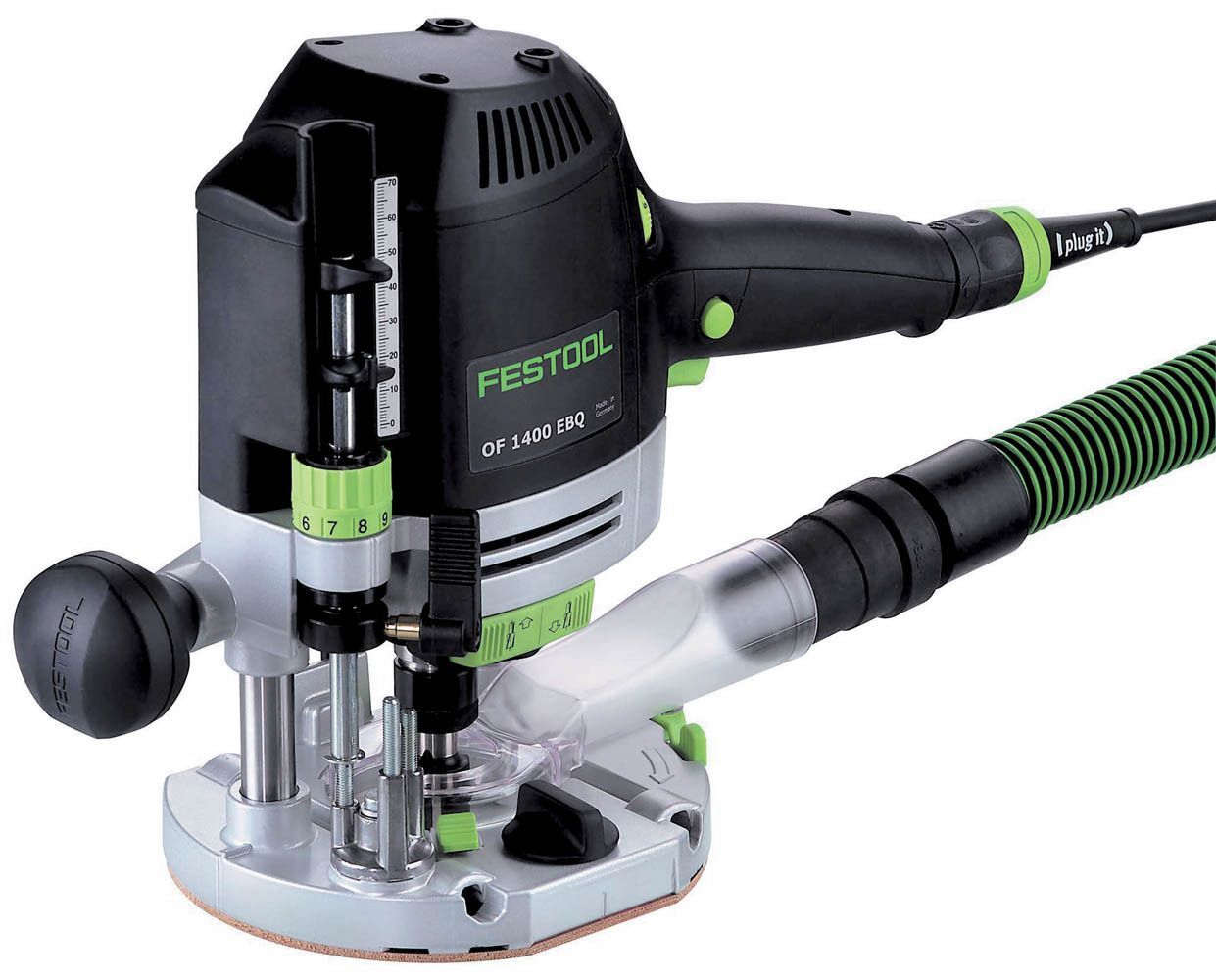

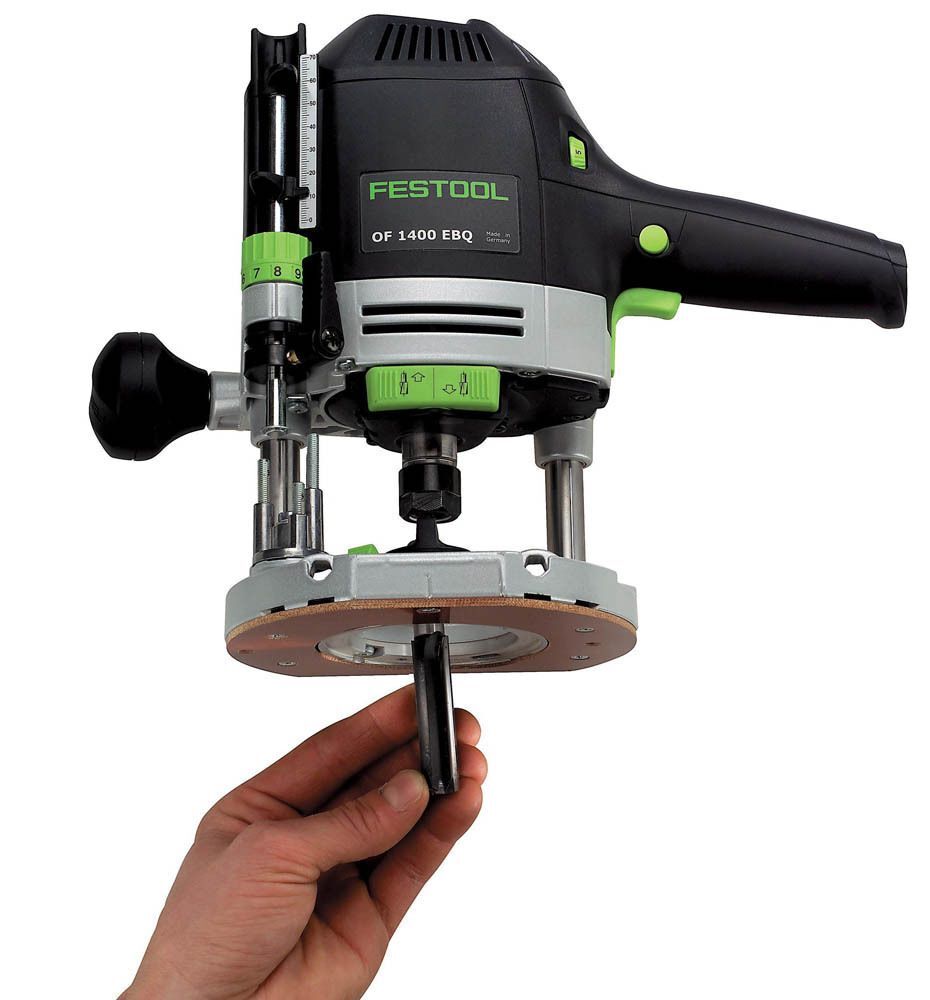

Tool free copying ring changes and quick, easy cutter changes allow you to adapt the router to the work piece efficiently. Accurate depth setting with zero function allows routing depth to be adjusted quickly, without the need for recalculation. Used with a dust hood and a Festool Dust Extractor, up to 99% of all chips are extracted during edge routing.

Main Applications

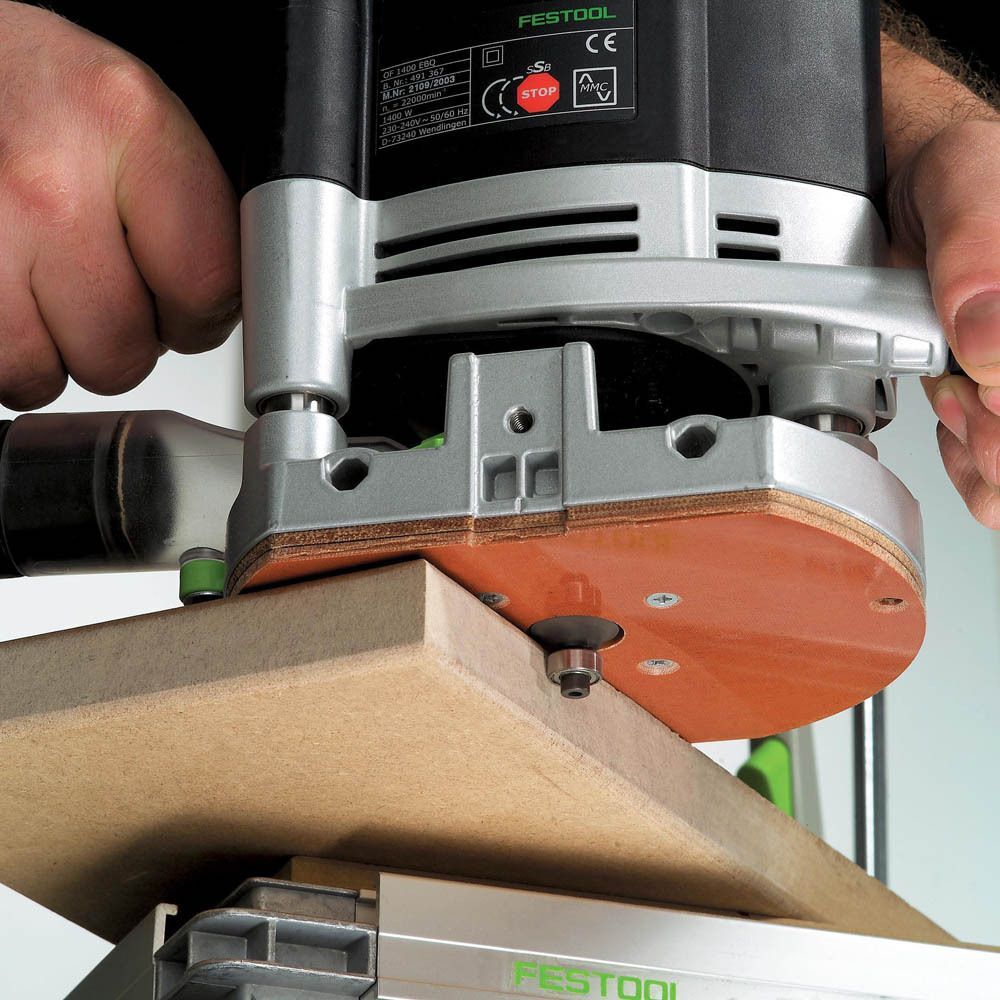

• Rounding, chamfering, rebating and profiling edges
• Routing circles and cut-outs
• Trenching rear panels and recessing dovetail batons

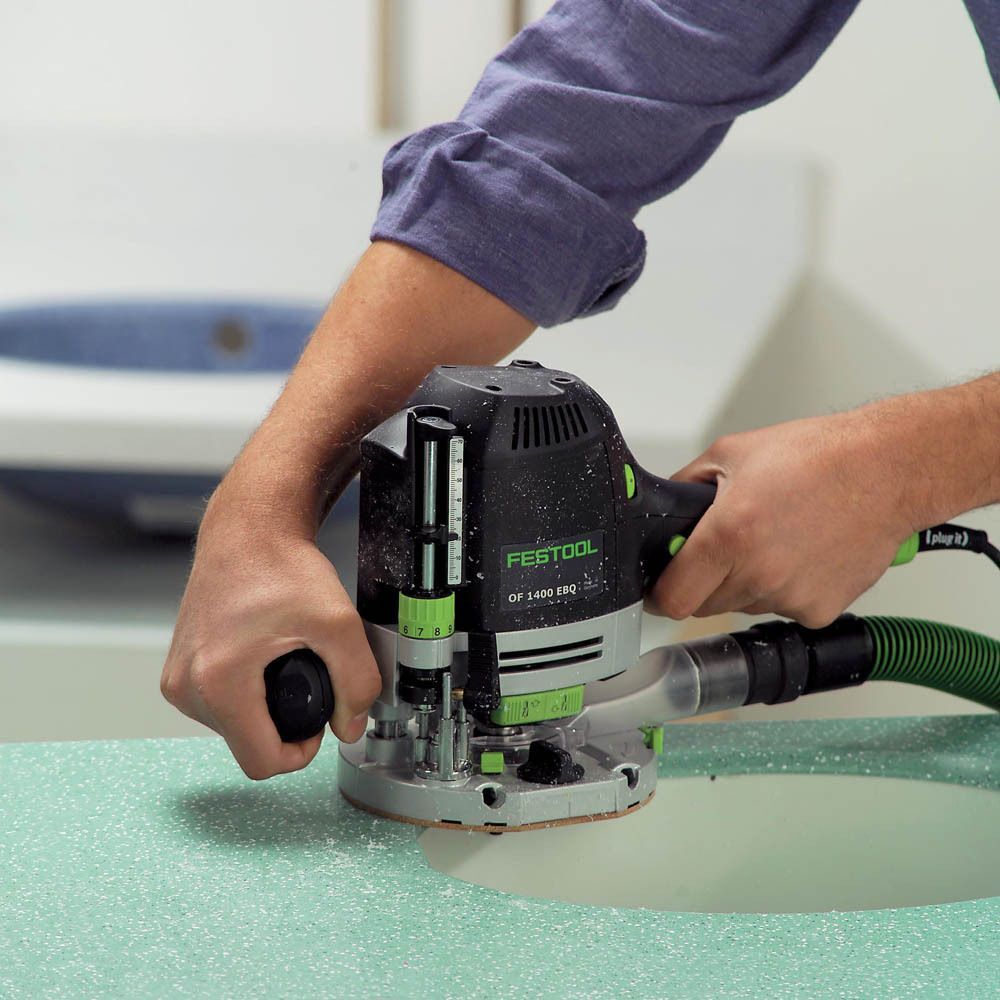

• Routing mineral material
• Making positioning holes for cabinet shelves

Strengths And Benefits

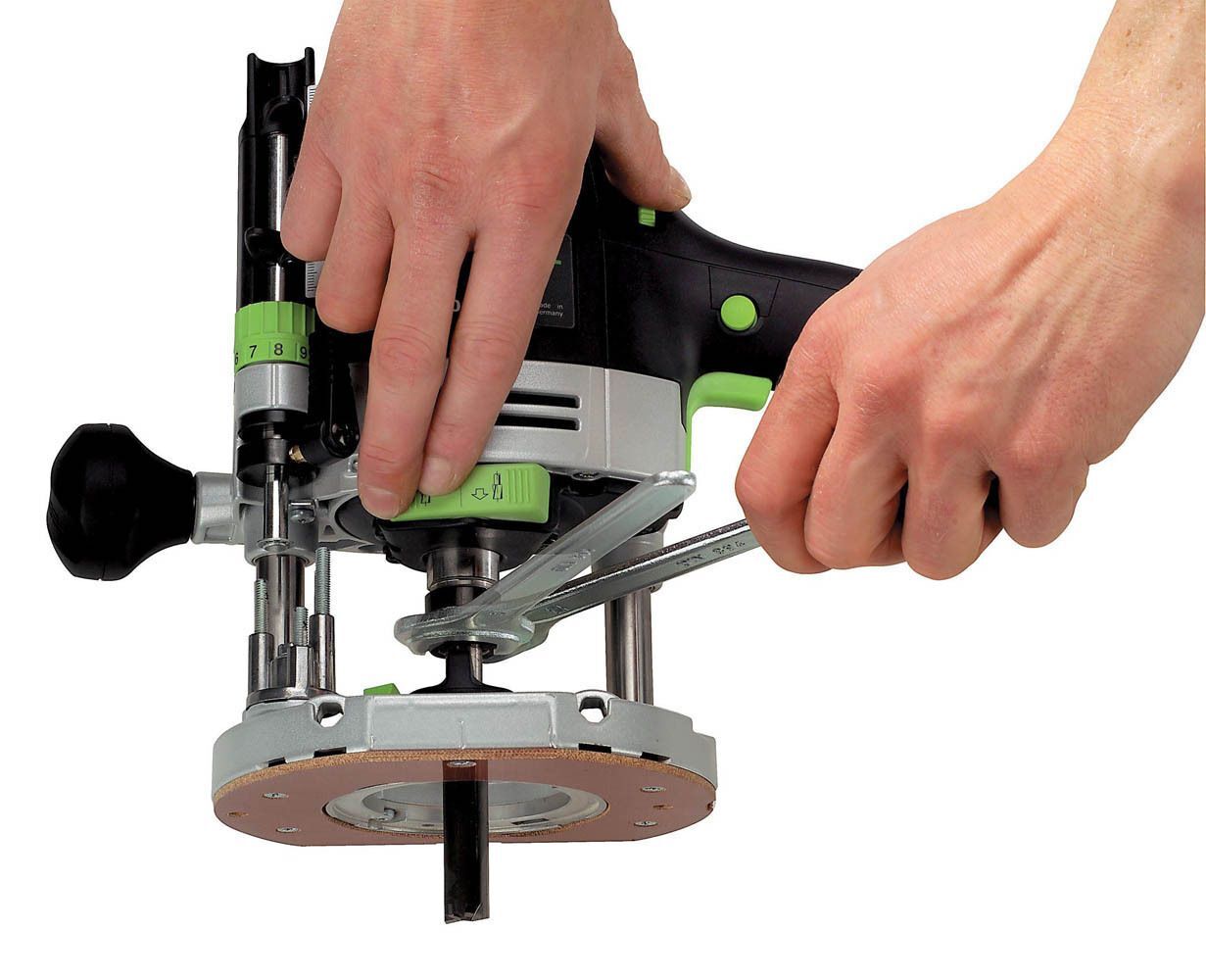

• Rocker and ratchet principle for convenient cutter changes
• Tool-free copying ring changes
• Routing depth adjustments 1/10mm
• Torsionally rigid base plate with dual guides
• Quick acting brake for improved safety

What's Included

• OF 1400 W Plunge Router
• D 1/4 inch Collet
• D 1/2 inch Collet
• Copy Ring D 30 mm
• Parallel Side Fence
• Chip Deflector
• Plug-it Lead
• SYS 4 T-LOC Systainer
• Tool Manual

​Technical Data

• Motor Type: Brushed
• Power Source: Corded
• Power Consumption: 1,400 W
• No Load Speed: 10,000 - 22,500 rpm
• Power Lead Type: Plug-it Lead
• Collet Diameter: 6 mm - 12.7 mm
• Routing Depth Adjustment Range: 70 mm
• Fine Height Adjustment Range: 8 mm
• Cutter Diameter: 63 mm
• Dust Extraction Connection Diameter: 27 mm / 36 mm
• Tool Weight: 4.5 kg
