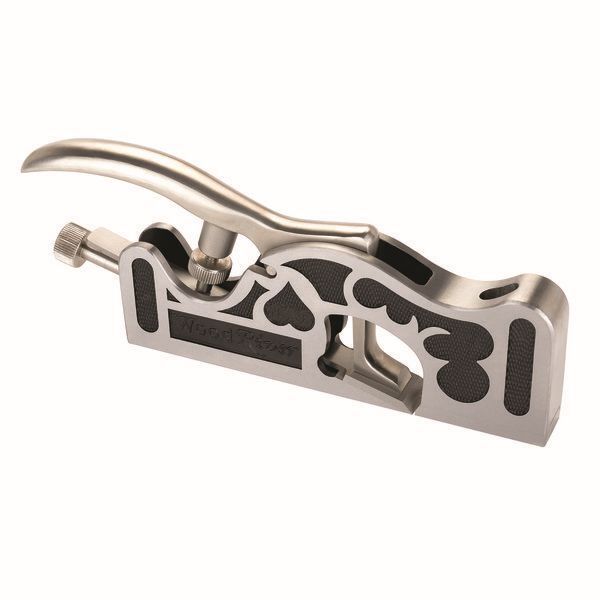

WoodRiver No 92 Med Shoulder Plane

SKU: 844788013261
$335.00
In stock
Size

Product Information

WoodRiver Shoulder Planes

The WoodRiver Should Planes combine the best of the Edward Preston and Sons’ plane designs with modern WoodRiver® features to create a “new classic” with the look and feel of a shiny antique but the body of shoulder plane equipped for serious shop work, whether cleaning up tenons, rabbets and dadoes or creating joints. The WoodRiver Planes are the result of two years of extensive prototyping and testing to develop a classic look for a plane that works as good as it looks. The classic shoulder plane features were retained – narrow body, slightly proud blade (to clean corners), sides square to the sole, flat bottoms and a necessary robustness—but a major new feature was added, an adjustable toe used to control the throat opening and help to minimize tear-out. The body is Cr40 stress-relieved ductile steel, machined square and flat, and the blade is Mn65 tool steel hardened to HRC60-64 which combines toughness with the ability to take a keen edge. The blade advancement mechanism is smooth and precise.

  • For tweaking tenons, rabbets and dadoes
  • Sides square to sole
  • Classic look and feel

Specifications :

  • No. 91 Small
    • Body length -3/4"
    • width 1/2"
    • height 1-7/8"
    • Overall Plane length 6-1/2"
    • height 2-3/8"
    • weight: 12.4 oz.
    • bedded angle, 15°
    • blade angle 25°.
  • No. 92 Medium
    • Body–length 7"
    • width 3/4"
    • height 2-1/2"
    • Overall Plane–length 8-13/16"
    • width 3/4"
    • height 3-1/4"
    • weight: 2 lbs.
    • 3.4 oz.; bedded angle 15°
    • blade angle 25°.
  • No. 93 Large
    • Body length 81/4"
    • width 1"
    • height 3”
    • Overall Plane length 10-7/16"
    • height 3-7/8"
    • weight: 3 lbs.
    • 12.8 oz.
    • bedded angle, 15°
    • blade angle 25°.
