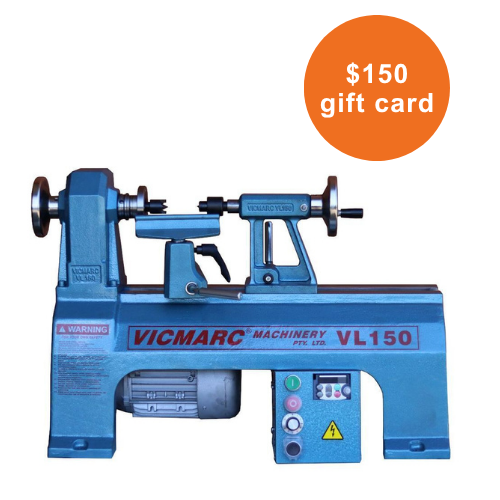

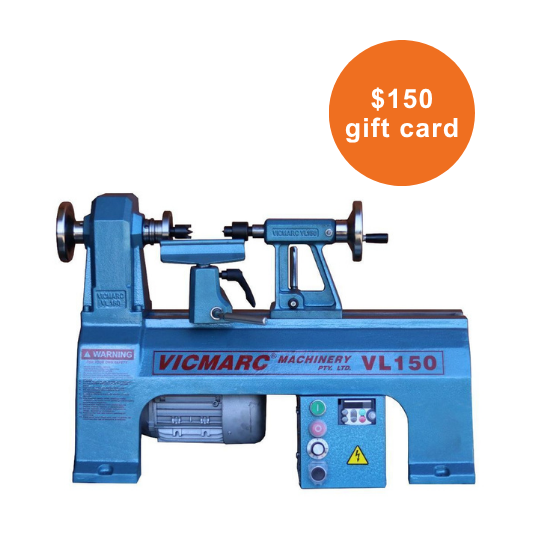

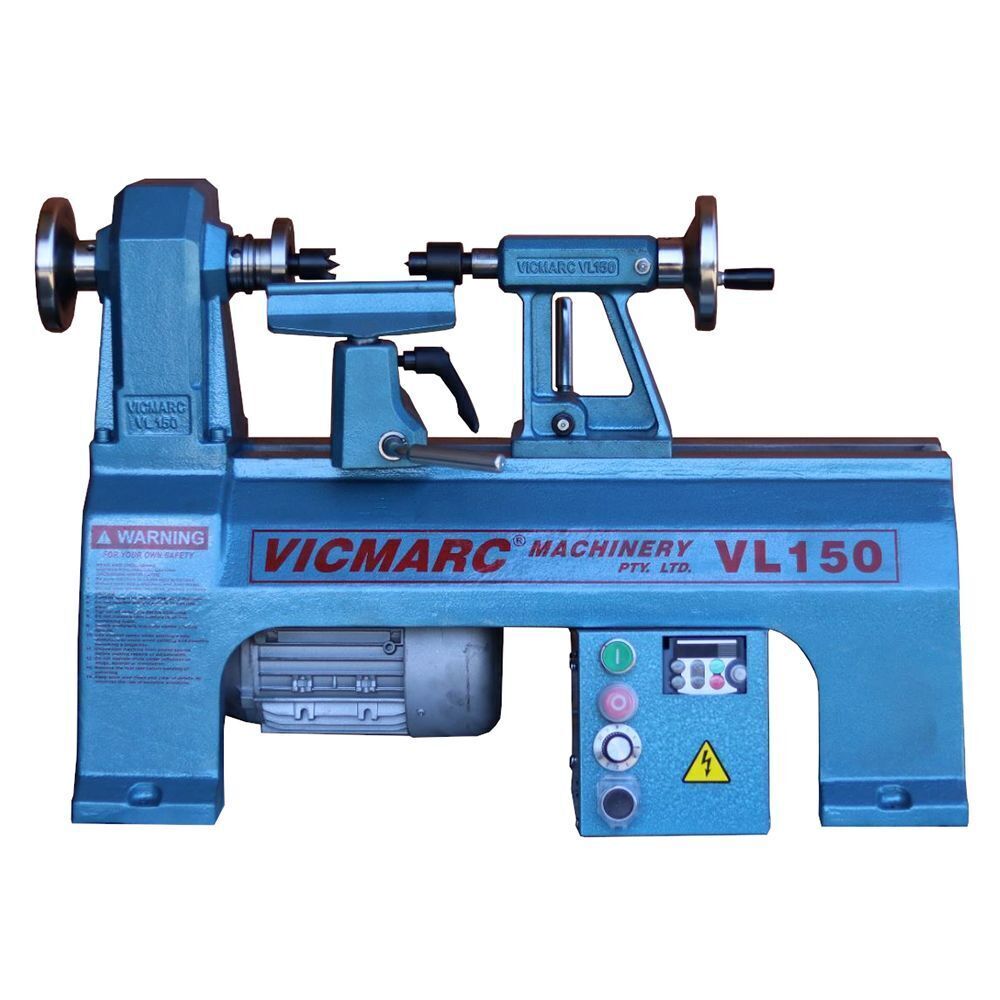

VICMARC Lathe - VL150 V2 EVS

Code: V00736-1AU

$2,769.25
RRP $2,915.00
SAVE $145.75 (5%)
In Stock
Prices are EXW. All Vicmarc Lathes are made to order and can take up to 4-6 weeks from the date the order is place to be shipped.



VICMARC Lathe - VL150 V2 EVS

The VL150 V2 EVS (Electronic Variable Speed) provides excellent performance with up to 150% torque on low RPM. This lathe has a powerful 0.75kW motor which allows for spindle speeds from 30-3460 RPM.  The full cast iron construction makes this an extremely rigid and high performing lathe. The electronics and switchgear is mounted in a moveable steel box which enables the turner to customise their set up conveniently.

First to introduce MT2, and taper roller bearings on this size lathe. The Vicmarc VL150 lathe is in a class of its own when compared to other midi lathes on the market. The best value feature-by-feature of any midi lathe sold in the world, this lathe is made to last a lifetime. Vicmarc is the midi lathe of choice for those seeking a quality compact lathe.

The VL150 V2 comes with a lot of great features such as:
  • Quality steel headstock indexing pin hinged headstock door
  • Powerful 1hp motor (0.75kW)
  • Built-in motor cover doubles as shaving and dust chute (See below photo)
  • Easy to use motor door makes the belt changing faster and easier
  • Easy to use belt tensioner
  • Movable switch box allows for a customisable setup
  • Electronic variable speed with digital display
  • Forward and reverse function
  • Tailstock lever can be switched to the front side if desired
  • Accurately machined and drilled end for adding an optional extension

Optional Extras:

  • Full Working Height Stand (Part No. V01085)

Pictured to the right is the VL150 SM EVS mounted on the Full Working Height Stand. This stand is an optional extra for the VL150. It gives a working height (from floor to centre of the spindle) of 1100mm. The footprint of this stand is 600mm Wide x 700mm Long.

  • Adjustable Full Working Height Stand (Part No. V01073)

We also have an Adjustable Full Working Height Stand available (Below). The picture to the right shows the VL150 SM EVS mounted onto this new stand. It gives a working height (from floor to centre of the spindle) of 1010mm to 1200mm. The footprint is 600mm Wide x 700mm Long.

Maximum Spindle RPM at each Pulley step.



‚ÄčPLEASE NOTE:

Prices are EXW. All Vicmarc Lathes are made to order and can take up to 4-6 weeks from the date the order is placed to be shipped.
Please contact us for shipping costs. The cost does not include the freight charge.

(V00736-1AU)

SKU V00736-1AU
Brand Vicmarc
Shipping Weight 73.0000kg
Type VICMARC Lathe - VL150 SM
