VICMARC Lathe - VL300S ASM EVS 2.2kW

Code: V00766-1AU

$6,792.50
In Stock
Prices are EXW. All Vicmarc Lathes are made to order and can take up to 4-6 weeks from the date the order is place to be shipped.

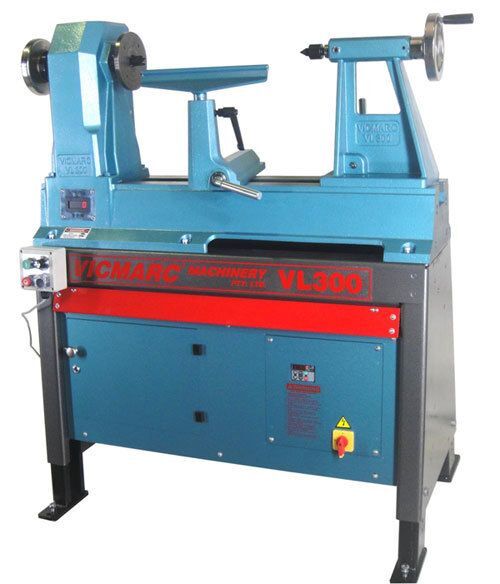

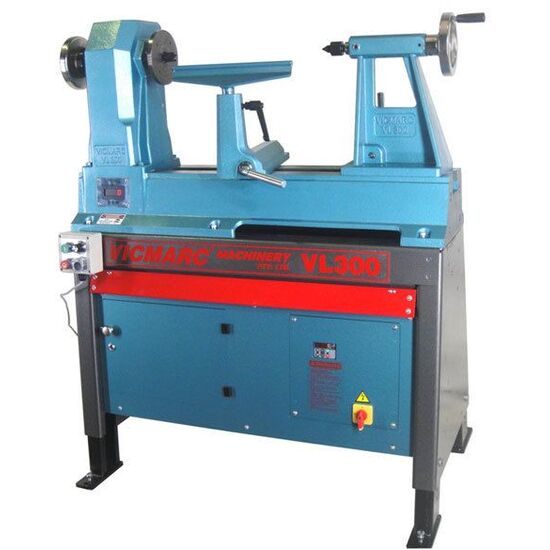

VICMARC Lathe - VL300S ASM EVS 2.2kW

The Vicmarc VL300 Short Adjustable Stand Mount EVS (Electronic Variable Speed) lathe has been designed to suit most professional wood turners. The electronic variable speed drive gives up to 200% torque on low rpm and it comes with a powerful 2.2kw motor . The three-step pulleys provide 3 ratios 1:1 for small to medium size work; 1:1.5 for medium to large work; and 1:3 for large work.

The cast iron lathe is mounted on a 5mm thick steel plate stand, which has been designed with a 700mm wide footprint for stability and rigidity. The stand also features wood shaving discharge chute and a knee stop bar.

The short bed version has an optional 500mm or 1000mm bolt on extension facility. By bolting the extension on to the lathe the distance between centers would be eother 1000mm or 1500mm.

New Features:

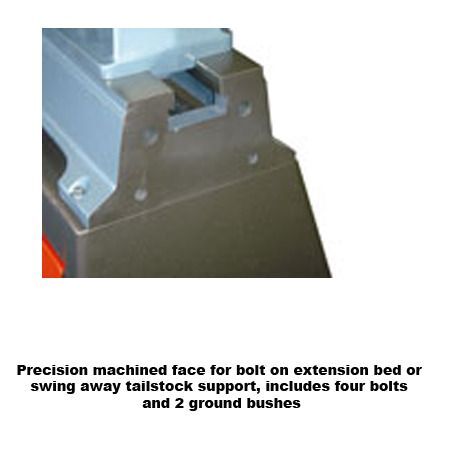

  • Precision machined face on both ends of the bed for bolt on extension bed or swing away tailstock support.
  • Hindged headstock door for ease of use and a new erganomic toolrest.
  • Another great new feature on this lathe is the indexing pin safety switch.  This prevents accidental startup while the indexing pin is engaged.

Digital speed readout located below the headstock that displays the actual spindle RPM.



Maximum spindle RPM at each Pulley step.

This model lathe can also be fitted with a mushroom twist stop bottom and additional limit switches on the headstock and motor doors making it comply to regulations for lathes in schools;  Part No. P01115

Adjustable center height from 1070mm to 1370mm
(Floor to centre of headstock spindle)

PLEASE NOTE:

Prices are EXW. All Vicmarc Lathes are made to order and can take up to 4-6 weeks from the date the order is place to be shipped.

Please contact us for shipping costs. The cost does not include the freight charge.

(V00766-1AU)

SKU V00766-1AU
Brand Vicmarc
Type VICMARC Lathe - VL300S ASM EVS 2.2kW
