VICMARC Lathe - VL150 V3 EVS

VICMARC Lathe - VL150 V3 EVS

The VL150 V3 EVS (Electronic Variable Speed) is the latest version of Vicmarc's flagship midi lathe, with several meaningful upgrades over the V2. The 0.75kW motor delivers up to 150% torque on low RPM. Full cast iron construction makes this an extremely rigid and high performing lathe, and the new remote magnetic switch box lets you mount the controls wherever they best suit your setup.

First to introduce MT2 and taper roller bearings on this size lathe, the Vicmarc VL150 is in a class of its own compared to other midi lathes on the market. The best value feature-by-feature of any midi lathe sold in the world, this lathe is made to last a lifetime. Vicmarc is the midi lathe of choice for those seeking a quality compact lathe.

What's new in V3

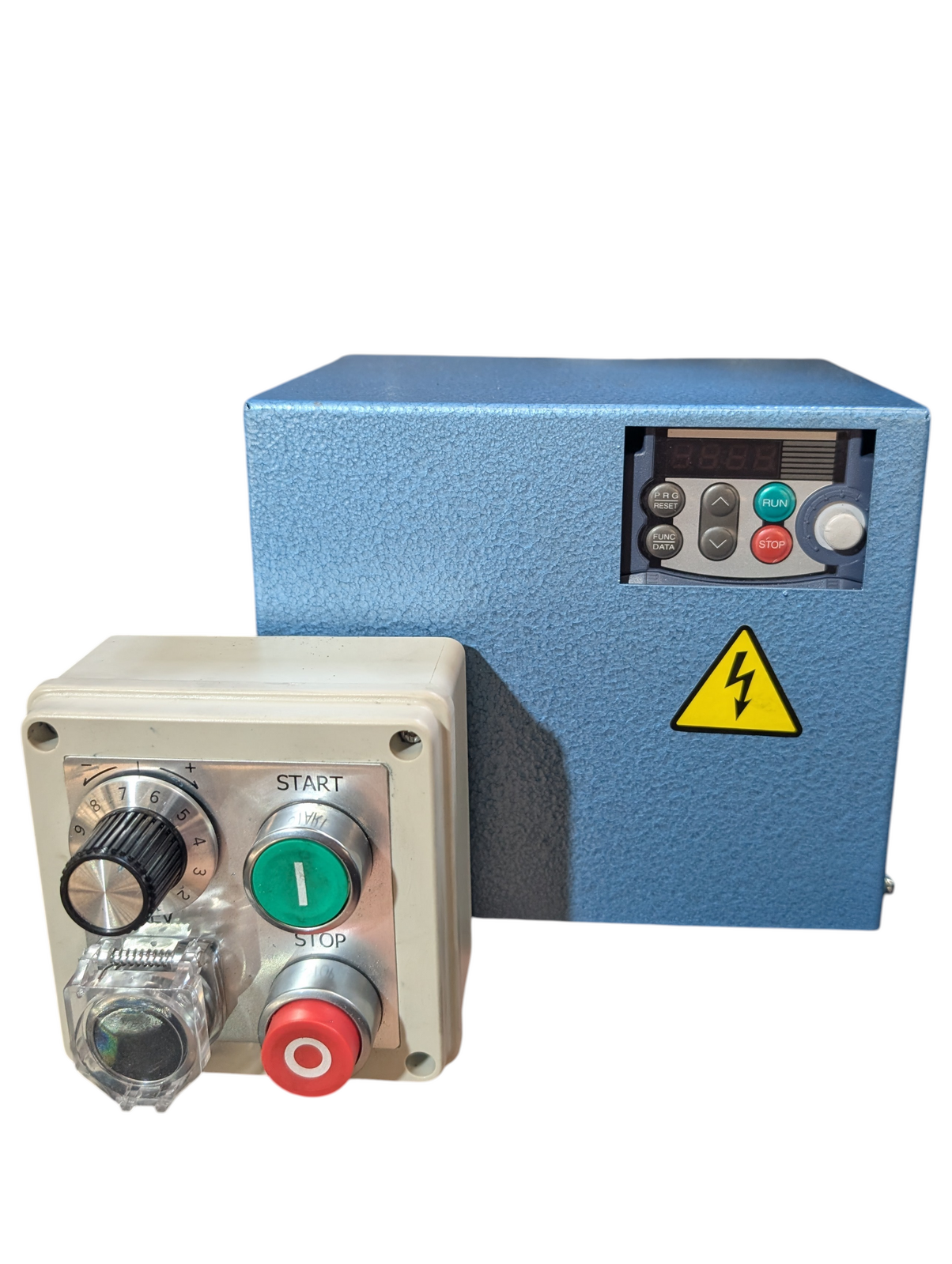

• Remote magnetic switch box for flexible control mounting
• Digital RPM display showing exact spindle speed regardless of belt position
• Outboard turning capability up to 500mm diameter (with optional Outboard Extension Bed, sold separately)
• Matching spindle thread on the outboard end so accessories swap straight across

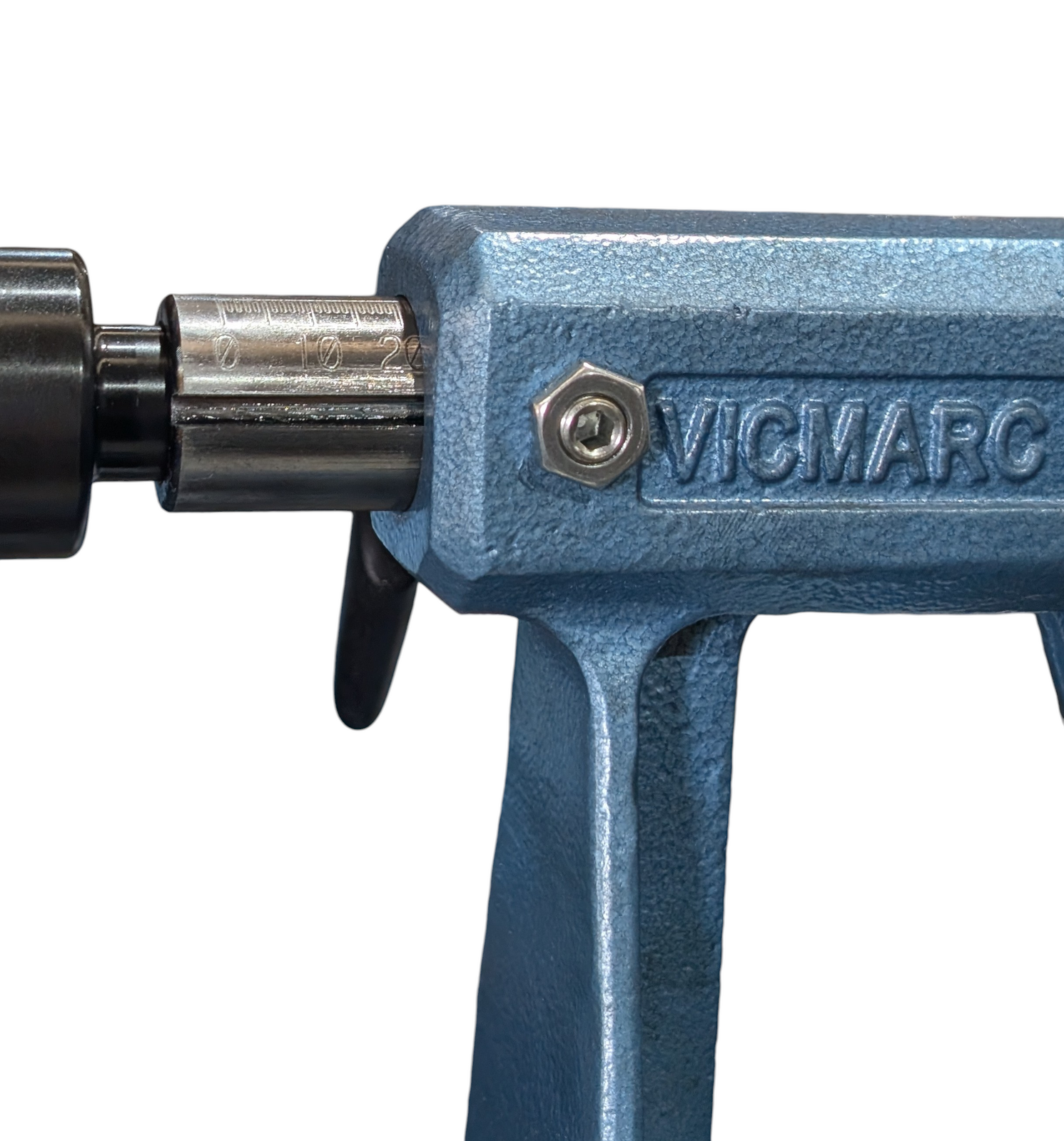

• Updated tailstock quill key (same design as the larger Vicmarc lathes)
• Brass insert in the toolrest locking lever to prevent tool post bruising

Standard features

• Powerful 1hp motor (0.75kW)
• Electronic variable speed with digital display
• Forward and reverse function
• Quality steel headstock with hinged door and indexing pin
• Built-in motor cover doubles as a shaving and dust chute
• Easy access motor door for fast belt changes
• Easy to use belt tensioner
• Tailstock lever can be switched to the front side if desired
• Accurately machined end ready for the optional outboard extension
• Inverter mounted on the door

Specifications

Standard accessories (included with the lathe)

Available in

Optional Extras (sold separately)

Note: The items below may appear in some product photos but are NOT included with the lathe purchase. They are available as separate items.

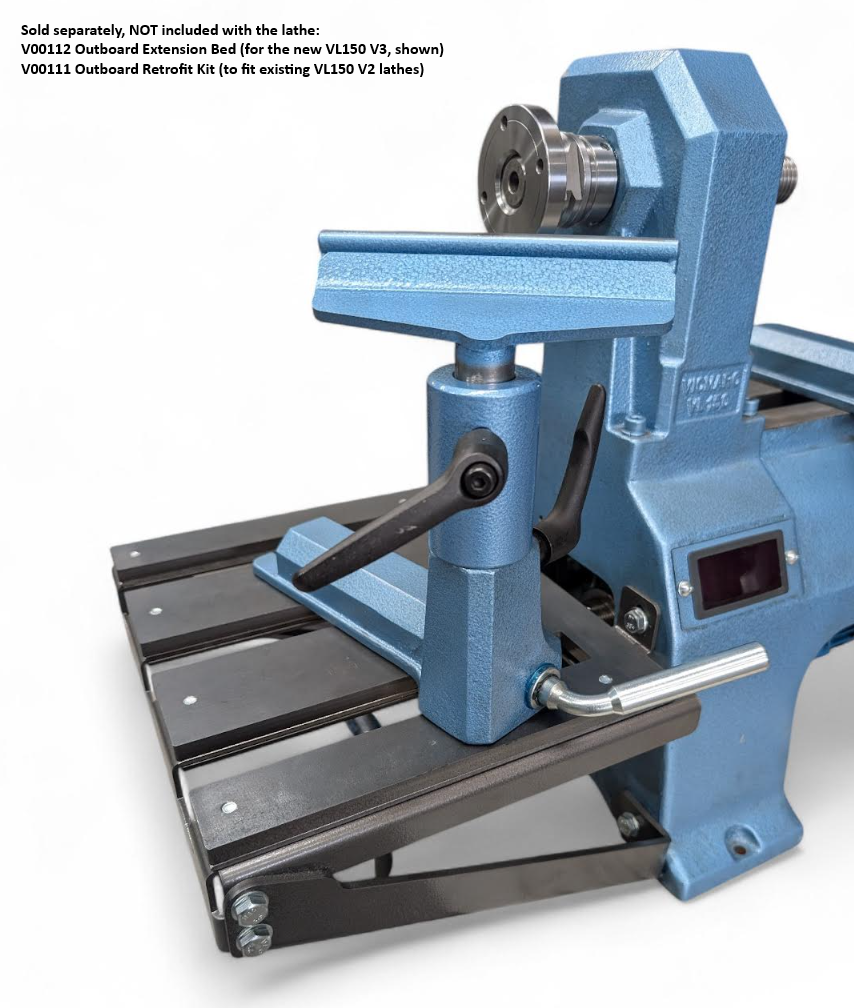

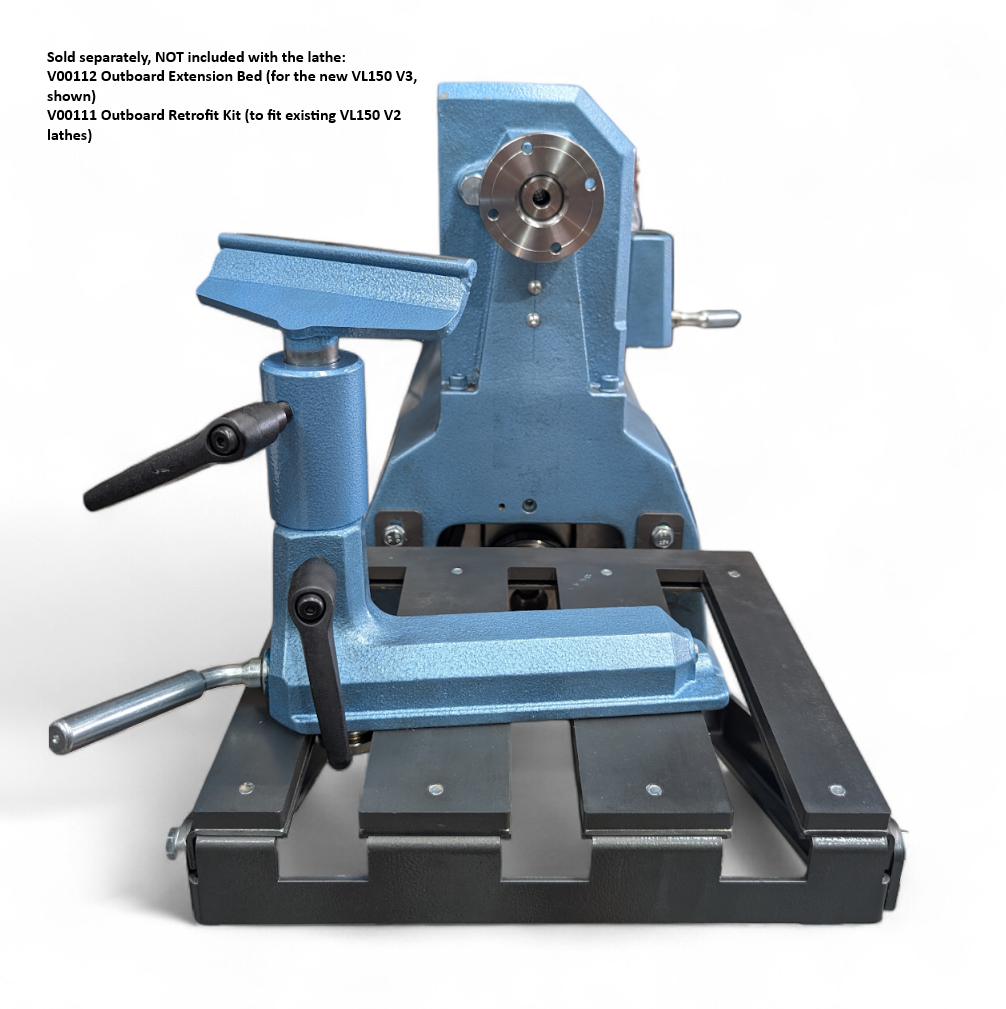

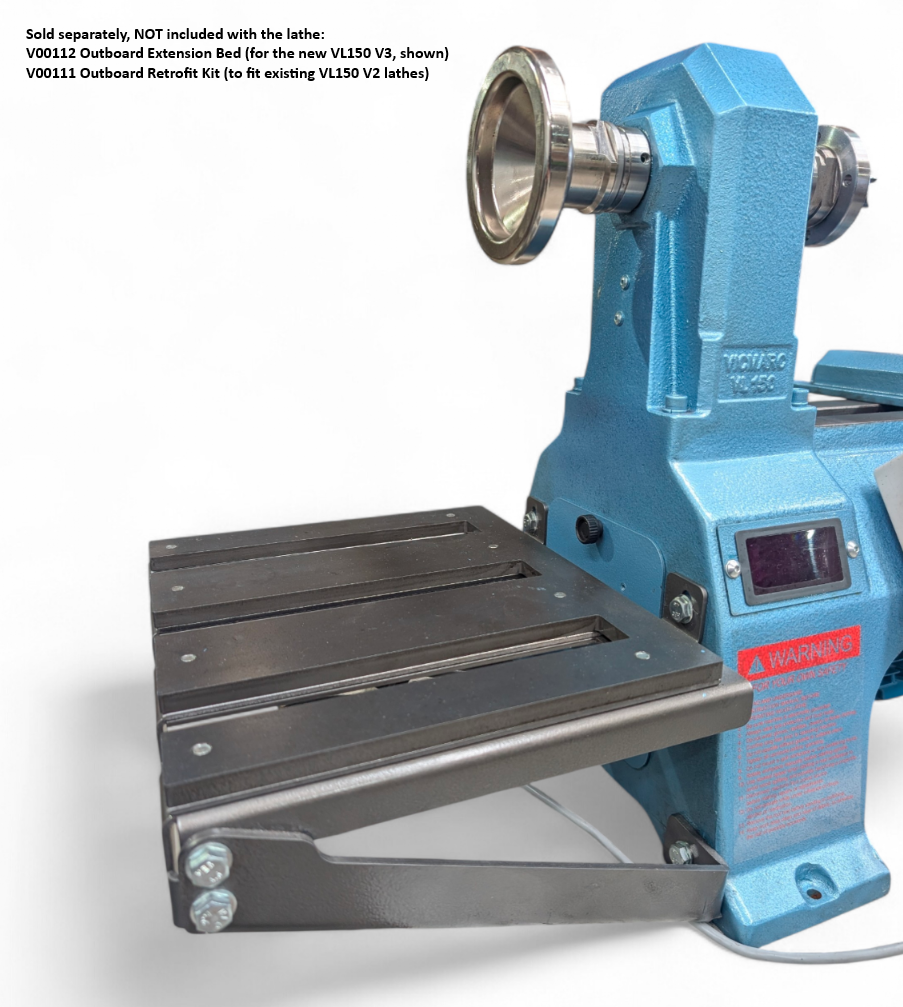

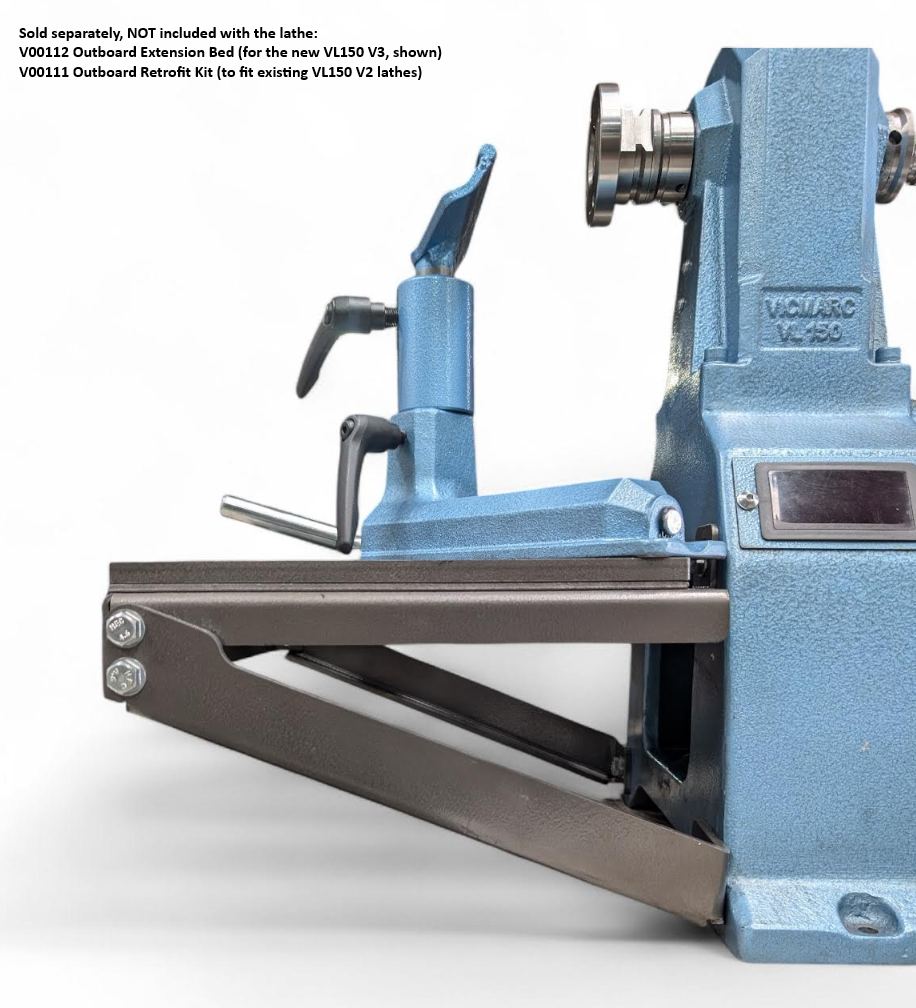

Outboard Extension Bed (V00112)

Adds a 260mm outboard bed with Camlock Riser and Locking Lever, taking your turning capacity up to 500mm in diameter. Designed to drop straight onto the V3 lathe with no modification required.

Outboard Extension Bed Retrofit Kit (V00111)

For existing V2 owners who want to add outboard turning to their machine. Includes the outboard bed, Camlock Riser, Locking Lever, and the hardware to fit it. Requires drilling 4 x 9mm holes (drill bit not supplied). Choose the variant matching your spindle thread.

Adjustable Full Working Height Stand (V01073)

Available as an optional extra. Provides a working height (floor to centre of spindle) of 935mm to 1200mm, adjustable to suit your height and turning style. Footprint is 600mm wide x 700mm long.

View the Adjustable Full Working Height Stand

All Vicmarc lathes are made to order and can take up to 4 to 6 weeks from the date the order is placed to be shipped. Please contact us for shipping costs. The cost does not include the freight charge.
