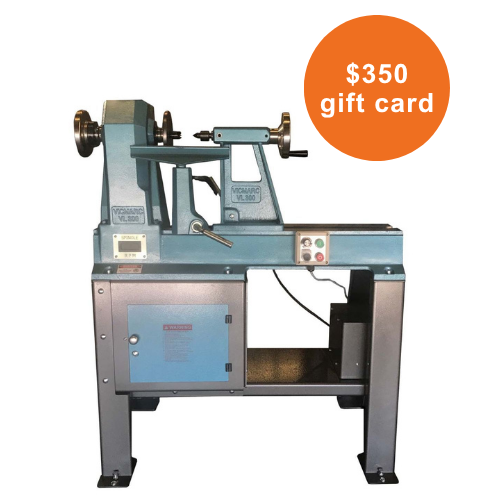

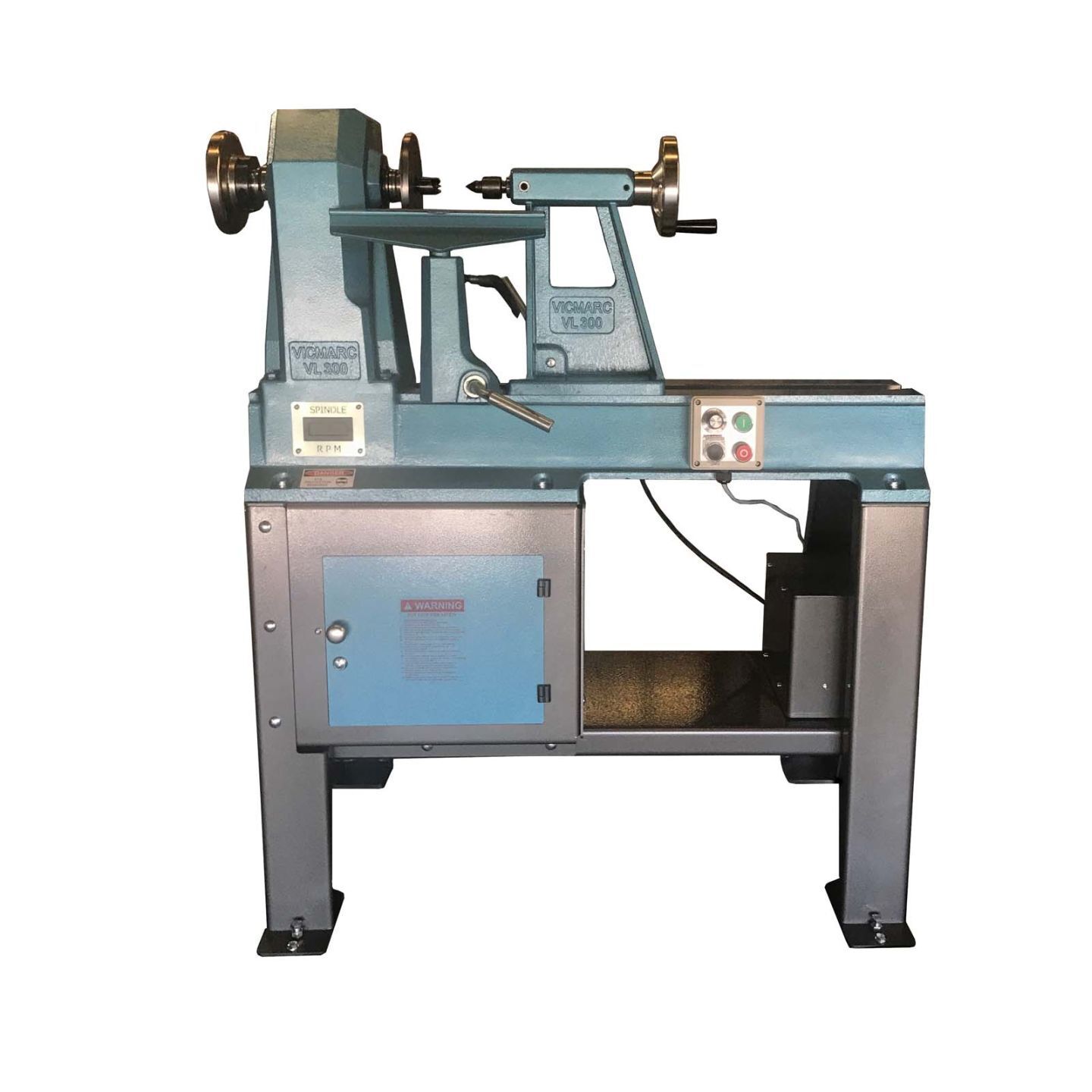

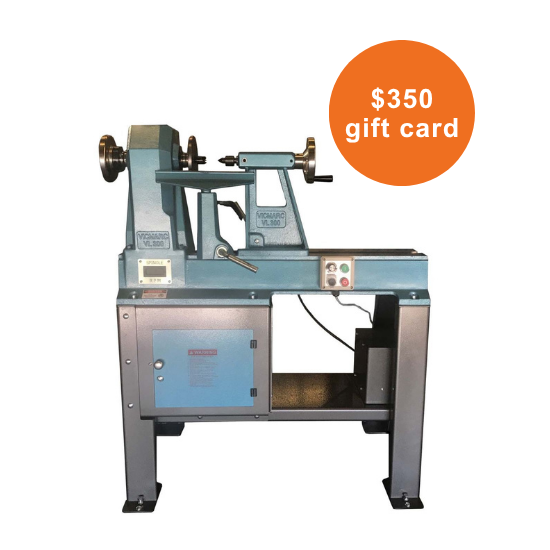

VICMARC Lathe - VL300 SHORT SM EVS 2.2kW
The VL300 Short Stand Mount EVS (Electronic Variable Speed) lathe is the big brother to the VL300 SM EVS 1.5kW lathe. It comes with a powerful 2.2kW motor (3HP).
The electronic variable speed drive gives up to 200% torque on low rpm. The three-step pulleys provide 3 ratios 1:1 for small to medium size work; 1:1.5 for medium to large work; and 1:3 for large work. The lathe is fitted with a remote magnetic switch box (inlcuding reverse), that can be postitioned anywhere on the lathe for easy access.
The cast iron lathe is mounted on a 4mm thick steel plate stand, which has been designed with a 700mm wide footprint for stability and rigidity.
All VL300 lathe models accept an extension bed at either end of the bed. A 500mm or 1000mm bolt on extension bed is available and multiple extensions can be added on.
Note: with 1000mm extension bed you will require an extension bed leg.
Features
- Precision machined face on both ends of the bed for bolt on extension bed or swing away tailstock support.
- Hindged headstock door for ease of use and a new ergonomic toolrest.
- Digital speed readout located below the headstock that displays the actual spindle RPM.
- Comes standard with Remote magnetic switch box
- Maximum spindle RPM at each Pulley step
This model lathe can also be fitted with a mushroom twist stop bottom and additional limit switches on the headstock and motor doors making it comply to regulations for lathes in schools; Part No. P01115
VL300S SM Specifications | |
---|---|
300mm | Centre Height |
600mm | Swing Over Bed |
500mm | Distance Between Centers |
1130mm | Work Height (Stand Bottom to Spindle Centre) |
24 | Indexing Holes |
No. 2 MT | Headstock & Tailstock Spindle |
Taper Roller | Spindle Bearings |
3 Speeds | EVS 10-3000 rpm |
30mm | Toolrest Post Diameter |
15mm | Hole Through Headstock Spindle |
10.5mm | Hole Through Tailstock Spindle |
75mm | Quill Travel |
235kg | Net Weight |
1060x680x1245 | Length x Width x Height (mm) |
Standard Accessories | |
---|---|
1 | Faceplate 150mm |
1 | Live Centre |
1 | Tool Rests 300mm |
1 | 10mm Knockout Bar |
1 | Drive Dog |
1 | Spanner |
1 | Vicmarc Hat |
1 | Owner's Manual |
PLEASE NOTE:
Prices are EXW. All Vicmarc Lathes are made to order and can take up to 4-6 weeks from the date the order is place to be shipped.
Please contact us for shipping costs. The cost does not include the freight charge.
