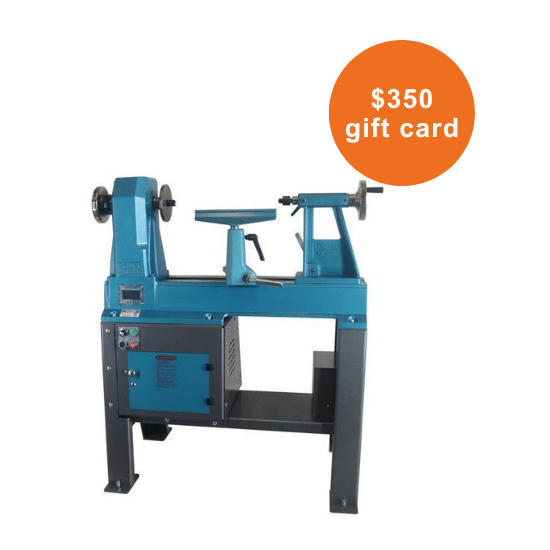

VICMARC Lathe - VL300 SHORT SM EVS 1.5kW

SKU: V00769-1AU
Prices are EXW. All Vicmarc Lathes are made to order and can take up to 4-6 weeks from the date the order is place to be shipped.
$6,237.00
In stock
Warehouse Collection - FREE
No charges when collecting from our warehouse located at 6/8 Wilmette Pl, Mona Vale NSW 2103. Timberbits will call to confirm when the order is ready. Collect between Monday - Friday 10 am-5 pm. Looking for shipping? Please check your cart and remove any dangerous goods as these are not eligible for shipping.
Product Information

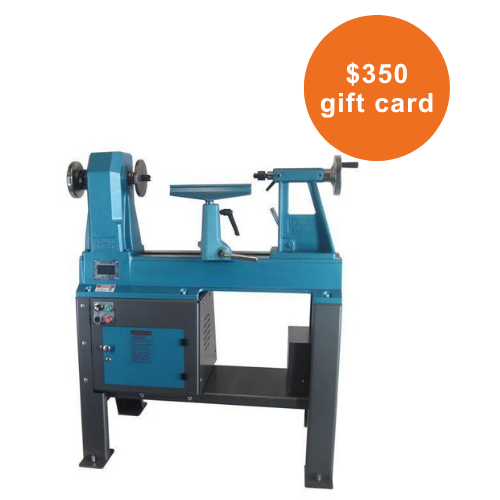

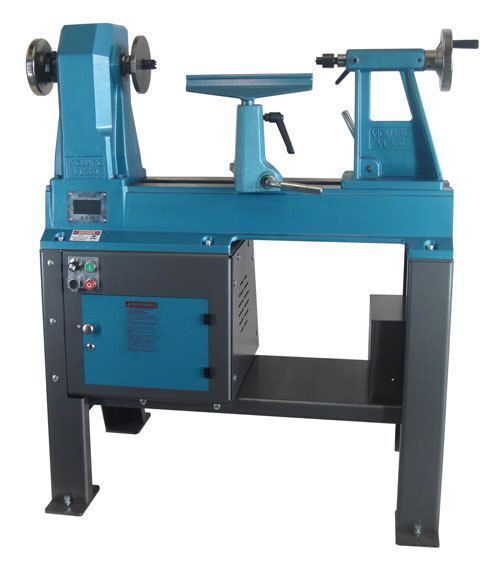

VICMARC Lathe - VL300 SHORT SM EVS

The VL300 Short Stand Mount EVS (Electronic Variable Speed) lathe is the little brother to the VL300 SM EVS 2.2kW lathe. It comes with a powerful 1.5kW motor (2HP).

The electronic variable speed drive gives up to 200% torque on low rpm. The three-step pulleys provide 3 ratios 1:1 for small to medium size work; 1:1.5 for medium to large work; and 1:3 for large work. The lathe is fitted with all control buttons (inlcuding reverse) on the stand below the headstock for easy access.

The cast iron lathe is mounted on a 4mm thick steel plate stand, which has been designed with a 700mm wide footprint for stability and rigidity.

All VL300 lathe models accept an extension bed at either end of the bed.  A 500mm or 1000mm bolt on extension bed is available and multiple extensions can be added on.

Note: with 1000mm extension bed you will require an extension bed leg.

New Features:

  • Precision machined face on both ends of the bed for bolt on extension bed or swing away tailstock support.
  • Digital speed readout located below the headstock that displays the actual spindle RPM.
  • indged headstock door for ease of use and a new ergonomic toolrest.
  • Remote magnetic switch box can be fitted as an optional extra.

Maximum spindle RPM at each Pulley step.

This model lathe can also be fitted with a mushroom twist stop bottom and additional limit switches on the headstock and motor doors making it comply to regulations for lathes in schools;  Part No. P01115

PLEASE NOTE:

Prices are EXW. All Vicmarc Lathes are made to order and can take up to 4-6 weeks from the date the order is place to be shipped.

Please contact us for shipping costs. The cost does not include the freight charge.
