Shapton Kuromaku Naoru Cast Iron Lapping System

SKU: 4944509005103

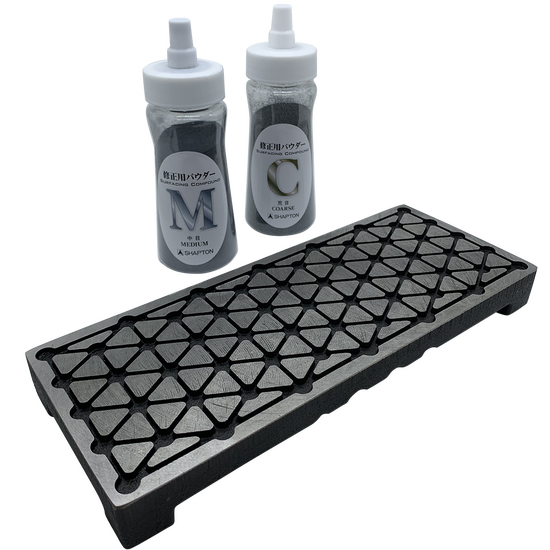

This Shapton Naoru Cast Iron Lapping System is made to clean and lap your sharpening stones. Designed for Shapton, but can also easily be used on other sharpening stones. The set is comprised of a cast-iron lapping stone two bottles of lapping powder.
$279.95
In stock
Currently In Stock
Fast Shipping Australia Wide
365 Day returns
Domestic Shipping - $15.00
Warehouse Collection - FREE
No charges when collecting from our warehouse located at 6/8 Wilmette Pl, Mona Vale NSW 2103. Timberbits will call to confirm when the order is ready. Collect between Monday - Friday 10 am-5 pm. Looking for shipping? Please check your cart and remove any dangerous goods as these are not eligible for shipping.
Product Information

Shapton Kuromaku Naoru Cast Iron Lapping System

Usage:

1. The stones you are intending to lap should be immersed in water for 2 to 3 minutes before starting work on them. When lapping non-Shapton stones, you should ensure the stones absorb plenty of water first.

2. As a guide, use a pencil to draw a grid on the stone surface to be flattened.

3. Place the NAORU lapping plate somewhere stable. Apply enough water to permeate the whole plate. If any water is left on the surface, the powder may get washed away.

4. Sprinkle a little powder onto 3 or 4 places on the plate, then rub it gently with a stone using a circular motion so that the powder gets distributed evenly across the plate.

5. Place the uneven surface of the stone requiring lapping onto the plate, and slide it backwards and forwards as shown in ① below,
then diagonally backwards and forwards as in ② and ③. Make sure that you use the whole plate. As you slide the stone to and fro, it may start to feel sticky or gooey, in which case you should add a little water. Conversely, if you add too much water it may start to feel smooth or slippery, in which case you should add some more powder. Get this balance right and you will be able to use the plate effectively without wasting powder. Parts where the lines get erased show where the lapping plate has made contact, i.e. where flattening has been performed correctly.

6. When you have finished lapping the stone, wash the plate off until it is clean, and allow it to dry. Even if the NAORU appears to ‘rust’ during storage, that will not affect its performance.



Types of Powder

The quality of the finish you obtain on the sharpening stone surface will vary depending on the type of powder used, so be sure you choose the right powder for the particular stone you will be lapping.

  • For sharpening stones of 40 microns or above (320 or below), use coarse powder.
  • For stones of 4 to 30 microns (500 to 3000), you can use coarse powder initially if the stone is quite uneven, to scrape it roughly, but then use medium powder to relap it. Normally only medium powder is needed.
  • For stones of less than 4 microns (4000 and above), you can use medium powder initially if the stone is quite uneven, to scrape it, but then use fine powder to relap it. Normally only fine powder is needed.

* Be sure to wash the plate and sharpening stone well each time you change to a different type of powder.
* If you apply a rough finish to the surface of a sharpening stone of less than 4 microns (4000 or above), you will not be able to harness the stone's full potential, and will be unable to give your blades their intended finish.
Always lap such a stone with a fine powder at the end, to produce a mirror-like finish, before you start sharpening.
* Fine powders are sold separately.



Powders are available here.
