INCRA M-LS32-TS-WF 810mm TS-LS Joinery System

SKU: 751922730085
Please contact us for shipping costs
$1,615.00
In stock
Currently In Stock
Fast Shipping Australia Wide
365 Day returns
Domestic Shipping - $99.00
Warehouse Collection - FREE
No charges when collecting from our warehouse located at 6/8 Wilmette Pl, Mona Vale NSW 2103. Timberbits will call to confirm when the order is ready. Collect between Monday - Friday 10 am-5 pm. Looking for shipping? Please check your cart and remove any dangerous goods as these are not eligible for shipping.

Product Video

Product Information

INCRA M-LS32-TS-WF 810mm TS-LS Joinery System



Available in metric through Timberbits



Do you already own a router table that you want to incorporate into your saw? The TS-LS Joinery System consists of a 810mm capacity TS-LS Rip Fence System and a complete package of our best routing equipment:

  • Wonder Fence Shaper-Style Router Fence
  • Jumbo Right Angle Fixture
  • Shop Stop Fence Stop
  • Master Reference Guide and Joinery Templates



Add our steel router table installation hardware (TSRTHW) as an accessory to save yourself the time and effort of fabricating your own method of attaching your router table to the INCRA TS Rails.



The INCRA TS router tables shown are sold separately from the TS-LS Joinery System.



See the TS-LS Compatibility Chart for more information regarding the TS-LS & TS Router Table installations.

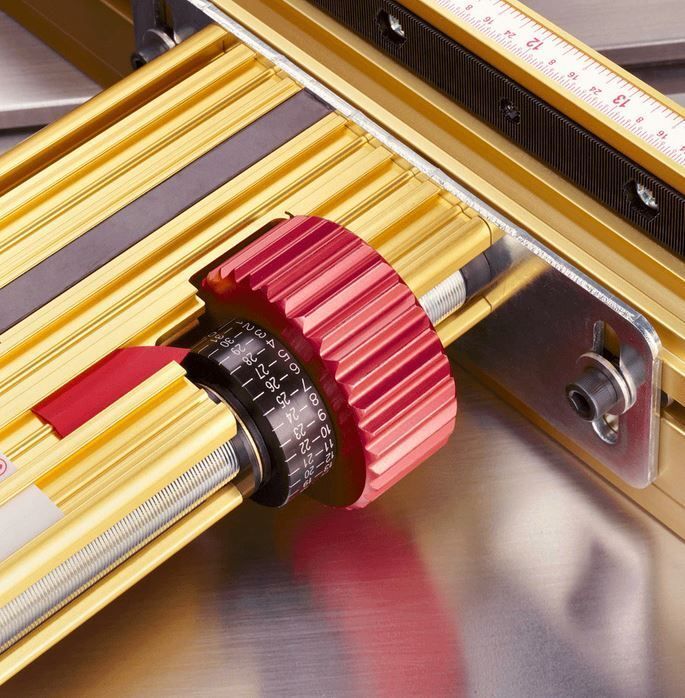

The Lead Screw (LS) Technology

Spend more time cutting, less time tapping and measuring! Now available in metric, the LS positioner's patented lead screw positioning mechanics allow fence positioning accuracy of +/- .002" at 1/32" increments (+/-0.05mm on 1mm increments) across its entire range. It's essentially perfect even without the built-in micro adjust, but the large micro-adjust knob turns the lead screw against the mating threads, allowing the fence to be shifted between incremental steps with .001" (0.025mm) resolution. The incredible control available completely eliminates the "Tap, tap, tapping" involved in making small adjustments to a conventional rip fence. And since the mike is lead screw-based and reads directly in thousandths of an inch, it's repeatable as well. This micro adjust is entirely different from the random, slow-motion knobs used on rip fences in the past.

The Lead Screw (LS) Technology



INCRA's TS-LS System was one of only two fence systems to earn top scores for alignment against the blade and lack of deflection in Wood Magazine's May 2004 Rip Fence Test. Perfect alignment relative to the blade is guaranteed by the system's low friction and by the carriage lock's tremendous pressure across the sliding carriage, not unlike a traditional T-square style rip fences. The fence can be initially aligned parallel to the miter slot, slightly "relieved" on the outfeed end, or anywhere in between.

Sliding Carriage



Sliding Carriage

INCRA TS-LS Table Saw Fence
- 52" Range
The 52" (1320mm)-capacity TS-LS System uses 92" rails and either a 32" or 810mm LS Positioner. The standard Mount Unit (LS52-TS) handles saws measuring 28" or smaller front-to-rear (along the miter slot). Saws measuring 28" to 33-1/2" deep can be accommodated by ordering the TS-LS with the "XL" Mount Unit (LS52-TS-XL), which has a longer fence and base support panel.

TS-LS Table Saw Fence - 52" Range





CONVENIENCE AND CAPACITY

The quick-release feature allows the positioner's base assembly to be positioned anywhere along the length of the rails to access a router table in any position, and the base assembly can removed in seconds, giving you total access to the saw's surface. The quick release also allows the base assembly to be reversed on the rails to allow about 14" (350mm) of ripping capacity to the left of the blade. After the fence and base assembly has been removed from the rails or repositioned, three pairs of stops on the rails guarantee that the fence system stays perfectly aligned and calibrated, time after time.


WILL THE INCRA TS-LS FIT ON MY TABLE SAW?

The INCRA TS-LS will fit directly on most cast iron 10" table saws, typically without any drilling or tapping. There are two things you need to check to make sure that it will fit your saw:

1. The length of miter gauge slot (front-to-back distance of table). If this measurement is 28” or less (standard for most 10" table saws), the standard INCRA TS-LS will fit your saw. If this measurement is between 28” and 33.5”, the TS-LS System can be ordered as an "XL" system using a longer fence extrusion and longer base support panel for a nominal charge as a substitution for the standard-length components.

2. The front and rear surfaces of the saw. These surfaces must be flat and square to the top, with at least two holes in each surface. INCRA's universal rail mounting brackets will match with holes for 5/16" or 3/8" bolts (or 8mm - 10mm), and the holes can be centered anywhere between 3/4" and 1-3/8" below the saw's top surface.



See the TS-LS Compatibility Chart for more information regarding the TS-LS & TS Router Table installations.


Consists of:

  • Package #1 - Pair of 72" Rails (RAIL72)
  • Package #2 - Base Mount Unit (TS-11AMOUNT)
  • Package #3 - LS32 Positioner (LS32WFNCSYS)



Downloads

PLEASE NOTE: Contact us for shipping costs. The cost does not include the freight charge.
