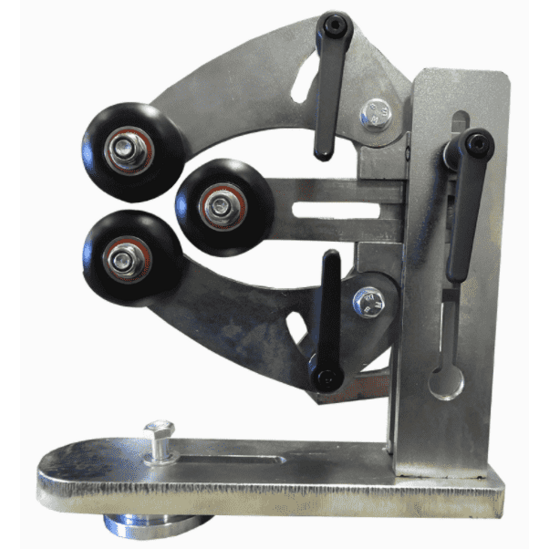

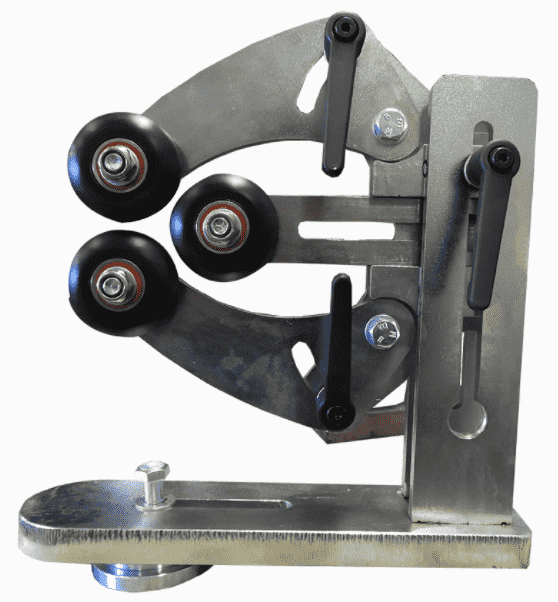

Vicmarc 3 Point Steady
The Vicmarc Universal 3 Point Steady, large and small, will work on most model lathes. These 3 Point Steady's are adjustable in height and can also be adjusted inwards and outwards to find your lathes centre line.
The Small Universal 3 point Steady can be used on lathes with a bed to spindle centre height measurement ranging from 150mm to 205mm. Lathes with a centre height of 150mm can hold parts ranging in size from 30mm - 120mm in diameter. Lathes with a centre height of 180mm to 205mm can hold parts ranging in size from 30mm - 150mm in diameter.
The Large Universal 3 point Steady can be used on lathes with a bed to spindle centre height measurement ranging from 175mm to 305mm. Lathes with a centre height of 175mm can hold parts ranging in size from 30mm - 190mm in diameter. Lathes with a centre height of 200mm can hold parts ranging in size from 30mm - 240mm in diameter. Lathes with a centre height of 240mm to 305mm can hold parts ranging in size from 30mm - 300mm in diameter.
Specifications:
Size | Capacity (dia) | Part No. |
---|---|---|
Small Universal | 30 - 150mm (see above note for range limits) | V01098 |
Large Universal | 30 - 300mm (see above note for range limits) | V01099 |
This is a special order item. Please allow 2 weeks (10 working days) for delivery.
Please contact us for shipping costs. The cost does not include the freight charge.
